ESD122DMXR
Manufacturer:
Texas Instruments
Mfr.Part #:
ESD122DMXR
Datasheet:
Description:

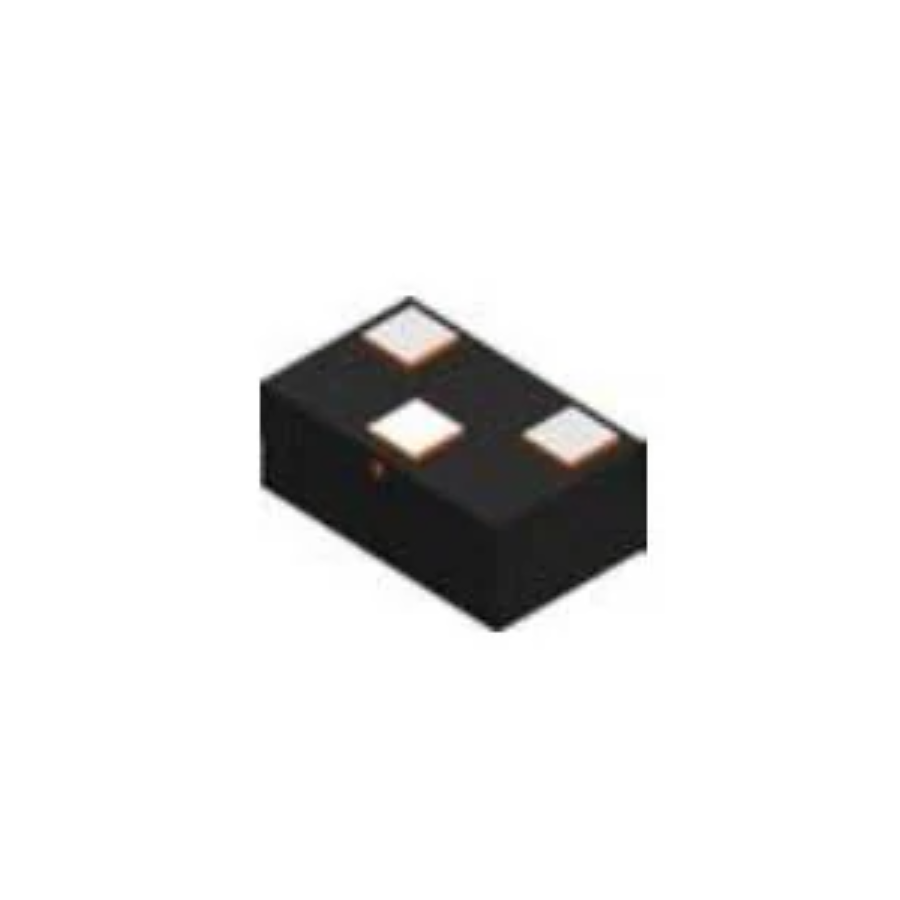

ESD and Circuit Protection ICs X2SON-3 SMD/SMT Working Voltage:3.6 V Breakdown Voltage:5 V 20 W 0.14 pF
| Parameter | Value |
|---|---|
| Capacitance | 200 fF |
| Length | 1 mm |
| Width | 600 µm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 3 |
| Height | 400 µm |
| Packaging | Reel |
| Thickness | 370 µm |
| RoHS | Compliant |
| Polarity | Bidirectional |
| Interface | GPIO, HDMI, PCIe, SATA, USB |
| Working Voltage | 3.6 V |
| Operating Supply Voltage | 3.6 V |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Ambient Temperature Range High | 125 °C |
| Peak Pulse Current | 2.5 A |
| Number of Channels | 2 |
| Breakdown Voltage | 5 V |
| Direction(Counting Sequence) | Bidirectional |
| Reverse Standoff Voltage | 3.6 V |
| Clamping Voltage | 8.4 V |
| Peak Pulse Power | 20 W |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Voltage ESD Contact | 18 kV |
| Voltage ESD Air Gap | 17 kV |
| Diode Capacitance | 0.14 pF |
Stock: 2860
Distributors
pcbx
pcbxUnit Price$0.70703
Ext.Price$0.70703
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.70703 | $0.70703 |
| 10 | $0.44200 | $4.42000 |
| 25 | $0.38399 | $9.59975 |
| 50 | $0.33360 | $16.68000 |
| 100 | $0.28982 | $28.98200 |
| 300 | $0.25479 | $76.43700 |
| 500 | $0.22399 | $111.99500 |
| 1000 | $0.18894 | $188.94000 |
| 3000 | $0.17884 | $536.52000 |
| 5000 | $0.16927 | $846.35000 |
| 10000 | $0.15474 | $1547.40000 |
